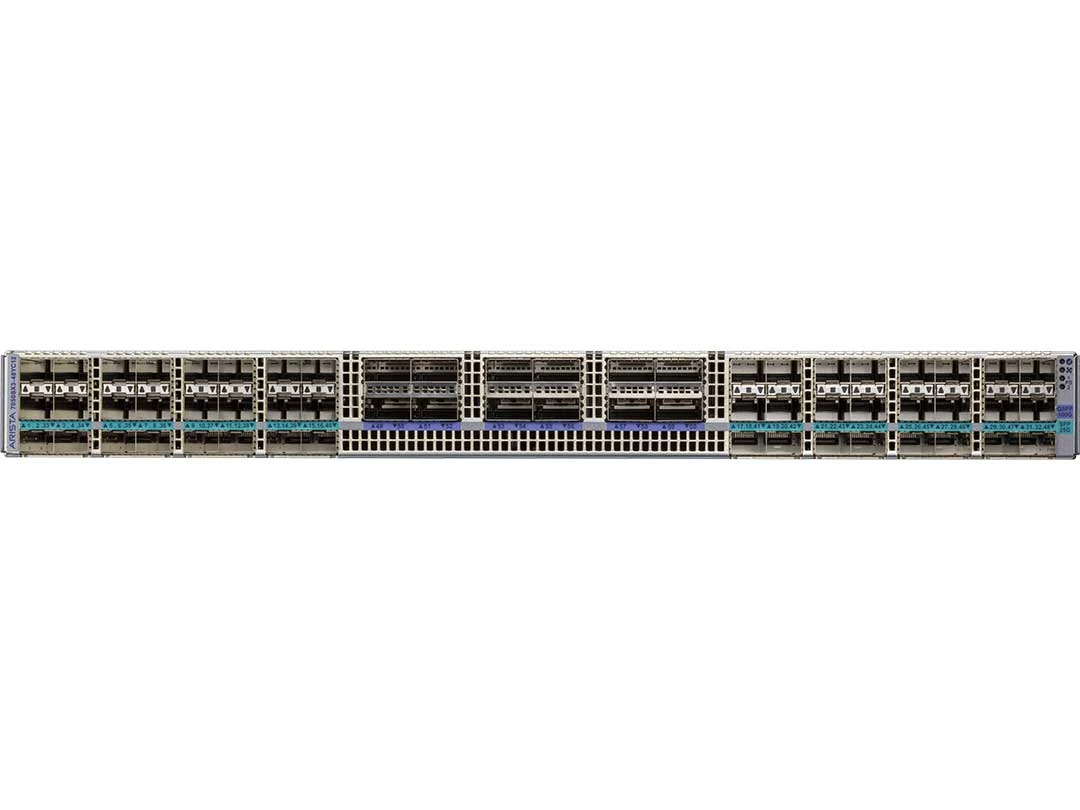

Arista 7050SX3 Series logo
Gallery Arista 7050X3 Series Introduction
7050SX3 Series port 7050SX3 Series high performance 7050SX3 Series memory 7050SX3-Series top
Editor's Choice
play Arista 7050X3 Series Introduction
7050SX3 Series port
7050SX3 Series high performance
7050SX3 Series memory

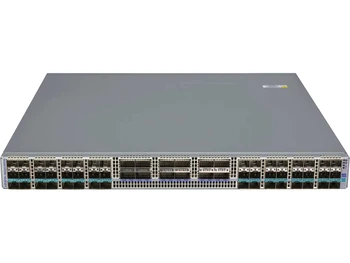

7050SX3-Series top

Arista 7050SX3 Series

by : Arista Networks

Price On Request

DiscountGet Discount

View plans

Save Extra with 2 Offers

  • offer_icon Save upto 28%, Get GST Invoice on your business purchase |
  • offer_icon Buy Now & Pay Later, Check offer on payment page.
consult_img2_opt

Get Free Expert Advice

The Arista 7050X3 Series is a line of high-performance, fixed-configuration 10/25G and 100G Ethernet switches designed for cloud-scale data centers. As the demand for high-performance servers utilizing virtualization and containers with elevated bandwidth continues to surge, this series addresses t... Read more

  • AdviceGet Instant Expert
    Advice
  • PaymentSafe & Secure
    Payment
  • GuaranteedAssured Best Price
    Guaranteed

Arista 7050SX3 Series Specifications

  • Suitable For :
  • Business Specific:
  • Dimensions :
  • Weight :
  • CPU :
  • Memory :
  • Storage :
  • USB :
  • Temperature Range :
  • Storage Temperature :
  • All Industries
  • All Businesses
  • 48.3 x 4.4 x 40.64 CM
  • 9.1 KG
  • 86x-Core Dual Core
  • 8 GB
  • 8 GB
  • 1 Ports
  • 0 to 40?C (32 to 104?F) °C
  • -40 to 70?C (-40 to 158?F) C

Arista 7050SX3 Series Pricing & Plans

Arista 7050SX3 Series price is available on request

Looking for pricing details, customization requirements or have other queries? We are just a click away.

Arista 7050SX3 Series Features

icon_check

Advanced Event Management

Intelligently filter and correlate network events for rapid troubleshooting and optimized resource allocation.

icon_check

Virtualization

Leverage network segmentation and isolation for multi-tenant environments and enhanced security.

icon_check

Precise Data Analysis

Utilize granular telemetry and in-depth packet capture for comprehensive network health and performance insights.

icon_check

Precision Timing (IEEE 1588)

Synchronize time across devices with nanosecond accuracy for mission-critical applications.

icon_check

Dynamic Load Balancing

Distribute traffic evenly across all available paths to eliminate bottlenecks and maximize network utilization.

icon_check

Flexible Pipeline

Customize the processing path of each packet for advanced traffic manipulation and network control.

Arista 7050SX3 Series Pricing, Features & Reviews

What is Arista 7050SX3 Series?

The Arista 7050X3 Series is a line of high-performance, fixed-configuration 10/25G and 100G Ethernet switches designed for cloud-scale data centers. As the demand for high-performance servers utilizing virtualization and containers with elevated bandwidth continues to surge, this series addresses this need with dense 25 and 100-G Ethernet switching capabilities strategically positioned in both the leaf and spine tiers of modern networks.

Designed for flexibility and performance, the switches offer wire-speed Layer 2 (L2) and Layer 3 (L3) features, combining extensive automation, programmability, low latency, and consistent features to meet the requirements of software-driven cloud networking. The series is available in various configuration options, each exemplifying high density and industry-leading power efficiency, with typical power consumption under 7W per 100GbE port. With flexible forwarding tables, low latency starting from 800 ns, and a fully shared packet buffer of up to 32MB for superior burst absorption, it excels in diverse network environments.

Why Choose Arista 7050SX3 LAN Switching Tool?

  • The  Lan Switching Tool enables efficient routing and forwarding at the network layer for enhanced scalability and performance.
  • It allows multiple physical links to be combined into a single logical link for enhancing bandwidth and providing redundancy.
  • It enhances network resilience by grouping multiple physical links into a single logical link and distributing traffic for improved performance and fault tolerance.
  • With support for Link Layer Discovery Protocol (LLDP), the series enables the discovery and exchange of information between neighboring network devices.
  • It dynamically maps private IP addresses to public addresses for efficient use of IP resources.

Benefits of Arista 7070SX3 Series

  • The switching tool provides a standardized set of data and variables to facilitate the monitoring and management of network devices through a unified interface.
  • It ensures rapid convergence and fault tolerance in network environments by providing per-VLAN spanning-tree instances.
  • The series facilitates communication between the control and forwarding planes in software-defined networking (SDN) environments.
  • It allows the duplication of network traffic from one port to another for analysis and monitoring purposes.
  • It monitors and controls broadcast, multicast, or unicast traffic levels to prevent network storms and maintain stability.

Technical Specifications of Arista 7050SX3 LAN Switching Tool

  • Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z
  • Form Factor (Hubs & Switches): Rack-mountable
  • Jumbo Frame Support: 9216 bytes
  • MAC Address Table Size: 288K entries
  • Ports: 48
  • Remote Management: CLI, RMON, RMON 2, SNMP 1, SNMP 2, SNMP 3, SSH-2, Telnet
  • Routing Protocol: BGP, Bidirectional Forwarding Detection (BFD), ECMP, IGMP, IGMPv2, IGMPv3, IS-IS, Multiprotocol BGP, OSPF, OSPFv3, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-2, URPF, Virtual ARP (VARP), VRRP
  • Switching Type: 10 Gigabit Ethernet
  • Performance: Latency: 800 ns, Packets per second: 1 Bpps, Throughput: 2.56 Tbps
  • Operating System: Arista EOS

Arista 7050SX3 Series Pricing

Arista 7050X3 Series pricing details are available on request at techjockey.com.

Its price in India may vary based on factors like customization, additional features required, the number of users, and the deployment type. Please request a call back for subscription-related details and to avail offers on premium packages.

One product can change your life

We make it happen! Get your hands on the best solution based on your needs.

Interacted
-

Arista 7050SX3 Series Reviews and Ratings

banner

Would you like to review this product?

Submit Reviews

Arista Networks Company Details

Brand Name Arista Networks
Information Arista Networks is an industry leader in data-driven, client to cloud networking for large data center, campus and routing environments.
Founded Year 2004
Director/Founders Andy Bechtolsheim, David Cheriton, Kenneth Duda
Company Size 1000+ Employees
Other Products Arista NAC, Arista Wi-Fi 6E, Arista AP C200, Arista AP C230, Arista AP C260

Arista 7050SX3 Series FAQ

A. The series offers various configurations with varying port densities (24, 32, or 48 ports) and speeds (10/25G or 100G).
A. The 7050X3 series offers up to 48 100GbE ports in a single switch, providing exceptional density for cloud-scale data centers.
A. The series supports features like role-based access control (RBAC), Secure Shell (SSH) encryption, and advanced threat detection mechanisms to safeguard your network infrastructure.
A. Yes, the series supports virtualization features like network segmentation and isolation. This allows you to create separate virtual networks for different tenants.
